Axiom™ Ultrasonic Removal System

To order, call 800-535-6638

Axiom™ Ultrasonic Removal System

Rapidly Melts, Fragments & Selectively Removes Cement in Hip & Knee Revisions

The Axiom™ Ultrasonic Removal System uses adaptive ultrasonic energy to melt polymethyl methacrylate bone cement (PMMA) at the blade tip, minimizing leverage on bone. The high frequency softens cement allowing selective and rapid cement removal, preserving the surrounding patient anatomy.



Key Benefits:

  • Cement removal with minimal force
  • Enhanced procedural guidance
  • Real-time audible & tactile feedback



Features:

  • Individual blade optimization stored in console
  • Continuous or pulsed ultrasonic power
  • Tailored power settings from 0-100%

Axiom

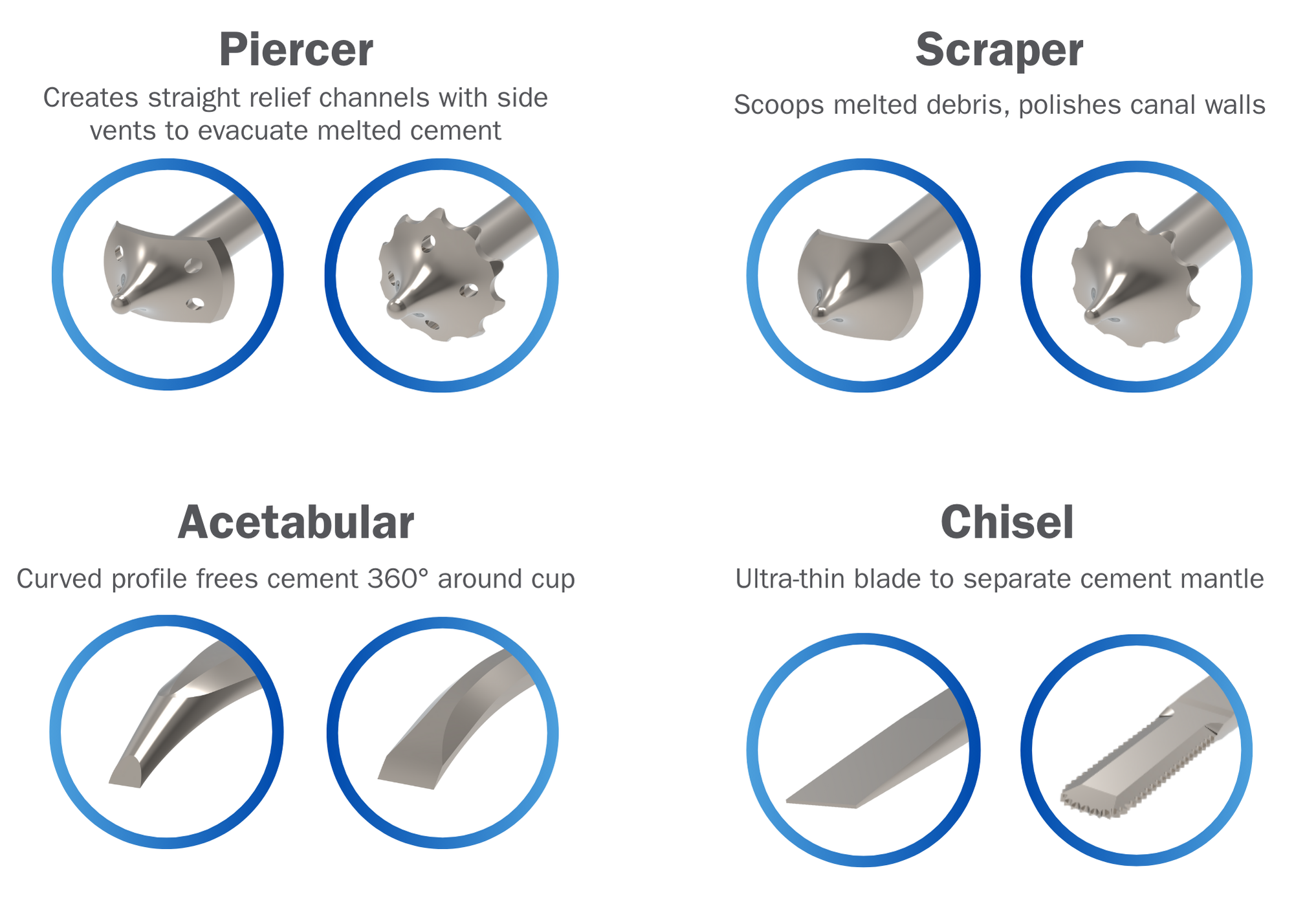

Axiom™ Blade Options
Product Number Item Description O.D. (mm) Length (mm)
BRAXM-FP6LH Full Piercer 6×270, Helical 6 270
BRAXM-FP10S Full Piercer 10×100 10 100
BRAXM-FP10M Ful Piercer 10×190 10 190
BRAXM-FP10L Full Piercer 10×300 10 300
BRAXM-HP10S Half Piercer 10×100 10 100
BRAXM-HP10M Half Piercer 10×190 10 190
BRAXM-FS6S Full Scraper 6×100 6 100
BRAXM-FS6M Full Scraper 6×190 6 190
BRAXM-FS8S Full Scraper 8×100 8 100
BRAXM-FS8M Full Scraper 8×190 8 190
BRAXM-HS6S Half Scraper 6×100 6 100
BRAXM-HS6M Half Scraper 6×190 6 190
BRAXM-HS8S Half Scraper 8×100 8 100
BRAXM-HS8M Half Scraper 8×190 8 190
BRAXM-HS10S Half Scraper 10×100 10 100
BRAXM-AG6S Acetabular Gouge 6×100 6 100
BRAXM-AG6L Acetabular Gouge 6×120 6 120
BRAXM-AG16M Acetabular Gouge 16×110 16 110
BRAXM-C5R Chisel 5.5×100 Round 5.5 100
BRAXM-C6R Chisel 6x100Round 6 100
BRAXM-C6F Chisel 6×100 Flat 6 100
BRAXM-EXT Extender 125

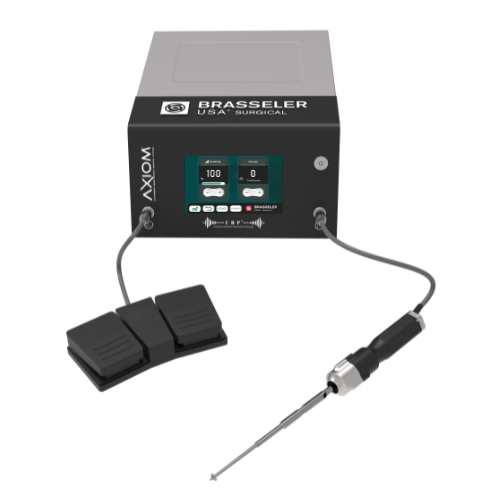

Axiom™ System Components
Product Number Item Description
BRAXM-UGK Axiom Ultrasonic Generator Kit
BRAXM-HM Ultrasonic Handle
BRAXM-UG Ultrasonic Generator
BRAXM-CWW Counter Wrench + 8MM
BRAXM-STC Sterilization Case
BRAXM-FS Foot Pedal



How to Purchase

Give us a call at 800-535-6638 or send us a message and one of our knowledgable representatives will be in touch.
