To order, call 800-535-6638.

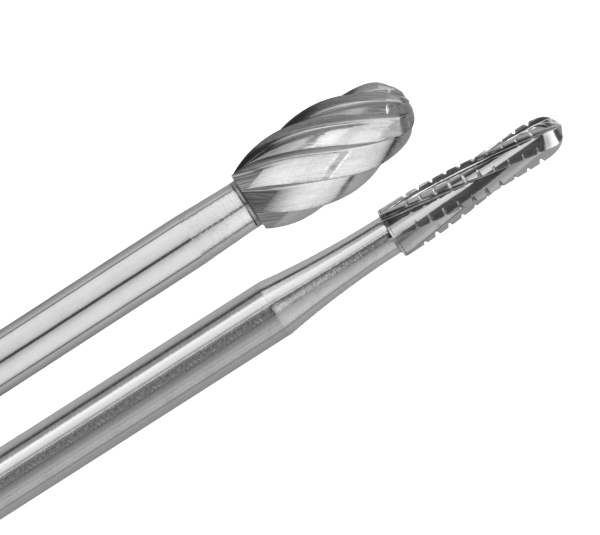

Micro Burs

Brasseler USA® Micro Burs

Compatible with Stryker® Micro Drill Systems: RemB™, CORE, TPS™, F1, TPX & Command 2

Brasseler USA® Surgical Instrumentation is pleased to offer our replacement surgical bur line in an assortment of various shapes and sizes to meet your surgical needs. Our surgical burs are designed for use in the following surgical applications: Neurosurgical, Orthopaedic, Oral/Maxillofacial and Plastic Reconstructive.

Our products are designed and manufactured to very rigid specifications using only the finest surgical grade stainless steel and undergo extensive engineering analysis. They are then subjected to strenuous inspection programs to ensure outstanding performance outcomes.

As the manufacturer, we sell direct, which allows us to offer our products at an average of 40-60% less verses the OEM.

Contact us now

Standard & Oral Surgery Stryker® J-Notch Replacements

Compatible with Stryker® Micro Drill Systems: RemB™, CORE, TPS™, F1, TPX & Command 2

Order Number Stryker® Replacements Description Total Length (mm) Head Diameter (mm) Head Length (mm) No. of Flutes/Grit Size
14-C0901 277-10-62, 277-010-062 Oval – Carbide 44.5 4.0 7.9 8
14-C0905 N/A Oval – Carbide 44.5 5.5 10.3 10
16-C0901 N/A Oval – Carbide 54.5 4.0 7.9 8
14-C0104 277-10-418, 277-010-418 Round – Carbide 44.5 1.8 1.8 6
14-C0105 277-10-225, 277-010-225 Round – Carbide 44.5 2.0 2.0 6
14-C0106 277-10-423, 277-010-423 Round – Carbide 44.5 2.3 2.3 8
14-C0107 277-10-230, 277-010-230 Round – Carbide 44.5 3.0 3.0 6
14-C0108 277-10-240, 277-010-240 Round – Carbide 44.5 4.0 4.0 8
14-C0109 277-10-250, 277-010-250 Round – Carbide 44.5 5.0 5.0 8
14-C0110 >N/A Round – Carbide 44.5 6.0 6.0 8
16-C0107 N/A Round – Carbide 54.5 3.0 3.0 6
16-C0108 N/A Round – Carbide 54.5 4.0 4.0 8
14-C0308 1607-2-103, 1607-002-103 Straight – Cross Cut – Carbide 44.5 1.6 4.5 6
14-C0405 N/A Straight – Cross Cut – Carbide 44.5 1.6 5.9 6
14-C0606 277-10-212, 277-010-212 Straight – Cross Cut – Carbide 44.5 1.2 4.1 6
14-C0608 277-10-216, 277-010-216 Tapered – Cross Cut – Carbide 44.5 1.6 4.3 6
14-C0616 277-10-221, 277-010-221 Tapered – Cross Cut – Carbide 44.5 2.1 4.8 6
16-D0130 1608-6-87, 1608-006-087 Round – Diamond 54.5 2.0 2.0 Fine
16-D0131 1608-6-89, 1608-006-089 Round – Diamond 54.5 2.4 2.4 Fine
16-D0132 1608-6-91, 1608-006-091 Round – Diamond 54.5 3.0 3.0 Medium
16-D0134 1608-6-93, 1608-006-093 Round – Diamond 54.5 3.5 3.5 Medium
16-D0135 1608-6-95, 1608-006-095 Round – Diamond 54.5 4.0 4.0 Medium
16-D0137 1608-6-99, 1608-006-099 Round – Diamond 54.5 5.0 5.0 Medium
14-S0402 1607-2-1, 1607-002-001 Cylinder – Stainless Steel 44.5 6.1 11.1 14
16-S0402 1608-2-1, 1608-002-001 Cylinder – Stainless Steel 54.5 6.1 11.1 14
15-S1101 607-2-47, 1607-002-047 Flame – Stainless Steel 48.0 6.0 12.7 14
14-S0201 1607-2-57, 1607-002-057 Inverted Cone – Stainless Steel 44.5 3.1 3.3 10
16-S1805 N/A Lindemann – Stainless Steel 54.5 1.6 9.0 4
16-S1801 1608-2-21, 1608-002-021 Lindemann – Stainless Steel 54.5 2.3 9.5 4
19-S1802 1608-2-43, 1608-002-043 Lindemann – Stainless Steel 66.7 2.2 24.3 4
23-S1809 N/A Lindemann – Stainless Steel 70.0 2.3 22.0 4
22-S1808 N/A Lindemann – Stainless Steel 75.0 2.3 35.0 4
14-S0903 1607-2-35, 1607-002-035 Oval – Stainless Steel 44.5 4.0 9.5 10
14-S0909 1607-2-3, 1607-002-003 Oval – Stainless Steel 44.5 6.0 9.5 14
16-S0903 1608-2-35, 1608-002-035 Oval – Stainless Steel 54.5 4.0 9.5 10
16-S0909 1608-2-3, 1608-002-003 Oval – Stainless Steel 54.5 6.0 9.5 14
14-S1201 1607-2-5, 1607-002-005 Pear – Stainless Steel 44.5 6.1 10.0 14
16-S1201 1608-2-5, 1608-002-005 Pear – Stainless Steel 54.5 6.1 10.0 14
16-S0106 1608-6-147, 1608-006-147 Round – Stainless Steel 54.5 2.3 2.3 6
16-S0107 1608-6-149, 1608-006-149 >Round – Stainless Steel 54.5 3.2 3.2 6
16-S0108 1608-6-137, 1608-006-137 Round – Stainless Steel 54.5 4.0 4.0 8
16-S0109 1608-6-141, 1608-006-141 Round – Stainless Steel 54.5 5.1 5.1 8
16-S0110 1608-6-143, 1608-006-143 Round – Stainless Steel 54.5 6.1 6.1 8
16-S0115 1608-2-9, 1608-002-009 Round – Stainless Steel 54.5 2.4 2.4 8
16-S0116 1608-6-163, 1608-006-163 Round – Stainless Steel 54.5 3.0 3.0 20
16-S0117 1608-2-11, 1608-002-011 Round – Stainless Steel 54.5 3.2 3.2 8
16-S0118 1608-6-165, 1608-006-165 Round – Stainless Steel 54.5 4.0 4.0 24
16-S0119 1608-6-151, 1608-006-151 Round – Stainless Steel 54.5 4.0 4.0 6
16-S0120 1608-2-55, 1608-002-055 Round – Stainless Steel 54.5 4.0 4.0 12
16-S0121 1608-6-153, 1608-006-153 Round – Stainless Steel 54.5 4.6 4.6 6
16-S0122 1608-6-139, 1608-006-139 Round – Stainless Steel 54.5 4.6 4.6 8
16-S0123 1608-2-13, 1608-002-013 Round – Stainless Steel 54.5 4.5 4.5 12
16-S0126 1608-6-145, 1608-006-145 Round – Stainless Steel 54.5 7.1 7.1 8
16-S1401 1608-2-101, 1608-002-101 Shannon Style – Tapered – Stainless Steel 54.5 2.1 11.1 3
16-S1601 1608-2-131, 1608-002-131 Swanson Reamer – Stainless Steel 56.5 2.0 10.5 5
17-S1602 1608-2-133, 1608-002-133 Swanson Reamer – Stainless Steel 62.0 3.0 13.5 5
17-S1603 1608-2-135, 1608-002-135 Swanson Reamer – Stainless Steel 62.0 4.0 13.5 6
18-S1701 1608-2-63, 1608-002-063 Wire Pass Drill – Stainless Steel 64.5 1.0 10.0 2
18-S1703 1608-2-59, 1608-002-059 Wire Pass Drill – Stainless Steel 65.5 1.5 6.9 2
19-S1705 1608-2-61, 1608-002-061 Wire Pass Drill – Stainless Steel 66.7 2.0 6.4 2

Oral Surgery Stryker® Flat Shank Replacements

Compatible with Stryker® Impaction Drill Systems – 100K, CMD, CORE & Oral Max

Order Number Stryker® Replacements Description Total Length (mm) Head Diameter (mm) Head Length (mm) No. of Flutes/Grit Size
KM948N N/A Round – Carbide 44.5 2.3 2.3 8
KMS958N 2296-101-423 Round – Carbide 58.4 2.3 2.3 8
KM94701N N/A Tapered Fissure – Cross Cut – Carbide 44.5 1.2 4.2 6
KMS94701N 2296-100-212 Tapered Fissure – Cross Cut – Carbide 44.5 1.2 4.2 6
KMS94702N 2296-100-216 Tapered Fissure – Cross Cut – Carbide 44.5 1.6 4.4 6
KMS94703N 2296-100-221 Tapered Fissure – Cross Cut – Carbide 44.5 2.1 4.8 6
KMS95701N 2296-101-212 Tapered Fissure – Cross Cut – Carbide 58.4 1.2 4.2 6
KMS95702N 2296-101-216 Tapered Fissure – Cross Cut – Carbide 58.4 1.6 4.4 6
KMS94703LN 2296-100-321 Tapered Fissure – Long Cross Cut – Carbide 44.5 2.1 7.5 6
KMS95702LN 2296-101-316 Tapered Fissure – Long Cross Cut – Carbide 58.4 1.6 6.0 6
KMS951703LN 2296-101-421 Tapered Fissure – Long Round End – Carbide 58.4 2.1 7.5 6
KM94901N 2296-100-26, 2296-100-026 Oval – Carbide 48.0 4.0 8.0 8
KMS95901N 2296-101-26, 2296-101-026 Oval – Carbide 58.4 4.0 8.0 8

Standard & Oral Surgery – 2.35 mm Straight Shank
ConMed® Linvatec® Replacements

Compatible with Small Bone/Micro Drill Systems: ConMed® Linvatec® – MicroPower®, MicroChoice®, Micro 100™, MicroE® & Surgairtome Two®; Brasseler USA® & MicroAire® – Small Bone/Micro Drill Systems

Order Number ConMed® Linvatec® Replacements Description Total Length (mm) Head Diameter (mm) Head Length (mm) No. of Flutes/Grit Size
03-C0901 5091-36, 5091-136, 5091-236, M40B Oval – Carbide 48.0 4.0 8.0 8
03-C0905 5091-38, 5091-138, 5091-238, M55B Oval – Carbide 48.0 5.5 10.2 10
09-C0901 5092-36, 5092-136, 5092-236, L40B Oval – Carbide 70.0 4.0 8.0 8
09-C0905 5092-38, 5092-138, 5092-238, L55B Oval – Carbide 70.0 5.5 10.2 10
12-C0901 5093-36, 5093-136, 5093-236, X40B Oval – Carbide 95.0 4.0 8.0 8
12-C0905 5093-38, 5093-138, 5093-238, X55B Oval – Carbide 95.0 5.5 10.2 10
04-C0101 5091-20, 5091-120, 5091-220 Round – Carbide 51.0 1.0 1.0 6
04-C0103 5091-22, 5091-122, 5091-222, M15R Round – Carbide 51.0 1.5 1.5 6
04-C0104 5091-21, 5091-121, 5091-221, M18R Round – Carbide 51.0 1.8 1.8 6
04-C0105 5091-24, 5091-124, 5091-224, M20R Round – Carbide 51.0 2.0 2.0 6
04-C0106 5091-23, 5091-123, 5091-223, M23R 5091-25, 5091-125, 5091-225, M24R Round – Carbide 51.0 2.3 2.3 8
04-C0107 5091-26, 5091-126, 5091-226, M30R Round – Carbide 51.0 3.0 3.0 8
04-C0108 5091-28, 5091-128, 5091-228, M40R Round – Carbide 51.0 4.0 4.0 8
04-C0109 5091-30, 5091-130, 5091-230, M50R Round – Carbide 51.0 5.0 5.0 10
04-C0110 M60R Round – Carbide 51.0 6.0 6.0 8
04-C0170 5091-32, 5091-132, 5091-232, M65R Round – Carbide 51.0 6.5 6.5 10
09-C0109 5092-30, 5092-130, 5092-230, L50R Round – Carbide 70.0 5.0 5.0 10
09-C0110 L60R Round – Carbide 70.0 6.0 6.0 8
09-C0170 5092-32, 5092-132, 5092-232, L65R Round – Carbide 70.0 6.5 6.5 10
10-C0101 5092-20, 5092-120, 5092-220, L10R Round – Carbide 71.5 1.0 1.0 6
10-C0103 5092-22, 5092-122, 5092-222, L15R Round – Carbide 72.0 1.5 1.5 6
10-C0105 5092-24, 5092-124, 5092-224. L20R Round – Carbide 72.5 2.0 2.0 6
10-C0107 5092-26, 5092-126, 5092-226, L30R Round – Carbide 73.0 3.0 3.0 8
10-C0108 5092-28, 5092-128, 5092-228, L40R Round – Carbide 73.0 4.0 4.0 8
12-C0105 5093-24, 5093-124, 5093-224, X20R Round – Carbide 95.0 2.0 2.0 6
12-C0108 5093-28,  5093-128, 5093-228, X40R Round – Carbide 95.0 4.0 4.0 8
12-C0109 5093-30, 5093-130, 5093-230, X50R Round – Carbide 95.0 5.0 5.0 10
04-C0601 5091-15, 5091-115, 5091-215 Tapered – Carbide 51.0 0.9 5.2 6
04-C0606 >M12T Tapered – Carbide 51.0 1.2 4.2 6
04-C0623 N/A Tapered – Carbide 51.0 1.2 6.0 6
04-C0609 5091-02, 5091-102, 5091-202, M15T Tapered – Carbide 51.0 1.5 10.0 6
04-C0607 5091-18, 5091-118, 5091-218 Tapered – Carbide 51.0 1.6 4.3 6
04-C0617 5091-06, 5091-106, 5091-206, M27T Tapered – Carbide 51.0 2.0 7.5 6
04-C0615 >N/A Tapered – Carbide 51.0 2.1 4.8 6
04-C0612 5091-13, 5091-113, 5091-213, M18T Tapered Cross Cut – Carbide 51.0 2.1 4.9 6
06-C0619 5091-14, 5091-114, 5091-214, M20T Tapered – Carbide 57.0 2.0 19.0 6
10-C0617 5092-06, 5092-106, 5092-206, L27T Tapered – Carbide 73.0 2.0 7.5 6
11-C0619 5092-14, 5092-114, 5092-214, L20T Tapered – Carbide 80.0 2.0 19.0 6
03-C0312 5091-54, 5091-154, 5091-254, M40S Straight – Cross Cut – Carbide 48.0 4.0 10.0 6
04-C0302 5091-01, 5091-101, 5091-201, M10S Straight – Cross Cut – Carbide 51.0 1.0 5.0 6
04-C0306 5091-04, 5091-104, 5091-204, M15S Straight – Cross Cut – Carbide 51.0 1.5 7.5 6
04-C0307 5091-17, 5091-117, 5091-217, M17S Straight – Carbide 51.0 1.6 4.3 6
10-C0306 5092-04, 5092-104, 5092-204, L13S, L17S Straight – Carbide 73.0 1.5 7.5 6
10-C0310 5092-52, 5092-152, 5092-252, L20S Straight – Cross Cut – Carbide 73.0 2.1 10.0 8
03-D0135 5091-264, 5091-164, 5091-264, M40D Round – Diamond 48.0 4.0 4.0 Medium
04-D0139 5091-60, 5091-160, 5091-260, M20D Round – Diamond 51.0 2.0 2.0 Medium
04-D0133 5091-62, 5091-162, 5091-262 Round – Diamond 51.0 3.0 3.0 Medium
09-D0135 5092-64, 5092-164, 5092-264, L40D, L60D Round – Diamond 70.0 4.0 4.0 Medium
09-D0141 5092-66, 5092-166, 5092-266, L50D Round – Diamond 70.0 5.0 5.0 Coarse
09-D0138 5092-68, 5092-168, 5092-268 Round – Diamond 70.0 6.0 6.0 Coarse
10-D0139 5092-60, 5092-160, 5092-260, L20D Round – Diamond 73.0 2.0 2.0 Medium
10-D0133 5092-62, 5092-162, 5092-262, L30D Round – Diamond 73.0 3.0 3.0 Medium
08-S1802 5091-12, 5091-112, 5091-212, L17L Lindemann – Stainless Steel 67.0 2.3 25.0 4
09-S0115 N/A Round – Stainless Steel 70.0 2.4 2.4 8
09-S0120 N/A Round – Stainless Steel 70.0 4.0 4.0 12
12-S0153 N/A Round – Stainless Steel 95.0 3.1 3.1 10
04-S1501 N/A Shannon Style – Tapered – Stainless Steel 51.0 2.3 12.0 4
06-S1601 5091-42, 5091-142, 5091-242, M20F Swanson Reamer – Stainless Steel 57.0 2.0 10.0 5
07-S1602 5091-43, 5091-143, 5091-243, M30F Swanson Reamer – Stainless Steel 62.0 3.0 13.5 5
07-S1605 5091-44, 5091-144, 5091-244, M40F Swanson Reamer – Stainless Steel 62.0 4.0 16.5 6
04-S1701 5091-47, 5091-147, 5091-247, M10W Wire Pass Drill – Stainless Steel 51.0 1.0 19.0 2
04-S1703 5091-48, 5091-148, 5091-248, M15W Wire Pass Drill – Stainless Steel 51.0 1.5 19.0 2
04-S1704 5091-49, 5091-149, 5091-249, M20W Wire Pass Drill – Stainless Steel 51.0 2.0 19.0 2
Brasseler USA® is a trademark of Peter Brasseler Holdings, LLC or its affiliates. ConMed® Linvatec® Hall® are registered trademarks of ConMed® Corporation. UltraPower®, MicroPower, MicroChoice®, Micro 100, Micro E® and Surgairtome Two® are trademarks of ConMed® Corporation. Medtronic® and Midas Re®x are registered trademarks of Medtronic, Inc., or its affiliates. MicroAire® is a registered trademark of MicroAire Surgical Instruments, LLC a Colson Associate or its affiliates. Stryker® is a registered trademark of Stryker Corporation. CORE, TPS™ and Command 2 are trademarks of Stryker Corporation or its affiliates. Brasseler USA® Surgical Instrumentation products are sold by Brasseler U.S.A. Medical, LLC, One Brasseler Boulevard, Savannah, Georgia, 31419, United States.
