Ortho Pin/Drill Packs & Guide Wires

We Specialize In Manufacturing Quality Orthopaedic Pin and Drill Pack Replacements

Fabricated from 17-4 stainless steel and are subjected to strenuous inspection programs to assure exceptional results.

Brasseler USA® Surgical Instrumentation replacement Orthopaedic Pin and Drill Packs are available in different variations compatible with OEM knee instrumentation systems. The ortho pins and standard twist drills are both fabricated from 17-4 stainless steel. The Pins and Twist Drills are subjected to strenuous inspection programs to assure exceptional results. We are pleased to provide only the best quality products for our customers at an exceptional value.

Stryker® Replacements

Compatible with Stryker® Knee Instrumentation Systems

Order Number Replacement Diameter (mm) Length (mm) Description Packaging
BMA-S90008S 7650-2038
7650-1038
3.1 88.9 Headless Pin
(Square End & Trocar Point)
4 Pins Per Pack
Sterile
BMA-S90010S 7650-2038A
7650-1038A
3.1 88.9 Headless Pin, Fluted
(Square End & Trocar Point)
4 Pins Per Pack
Sterile
BMA-S90010S 6541-4-003
6541-004-003
3.1 76.2 Headless Pin
(Square End & Trocar Point)
4 Pins Per Pack
Sterile

Compatible with Stryker® Ortholock™ Navigation System

Order Number Replacement Diameter (mm) Length (mm) Description Packaging
ST6007-003-100 6007-003-100 3 100 Navigation Pin
(Square End & Trocar Point)
2 Pins Per Pack
Sterile
ST6007-003-150 6007-003-150 3 150 Navigation Pin
(Square End & Trocar Point)
2 Pins Per Pack
Sterile
ST6007-103-110 6007-103-110 3 110 Navigation Pin
(Square End & Trocar Point)
2 Pins Per Pack
Sterile
ST6007-104-150 6007-104-150 4 150 Navigation Pin
(Square End & Trocar Point)
2 Pins Per Pack
Sterile

DePuy® Synthes® Replacements

Compatible with DePuy® Synthes® Knee Instrumentation Systems

Order Number Replacement Diameter (mm) Length (mm) Description Packaging
BMA-S90006S 2490-95-000
2490-95
3.1 76.2 Fixation Pin
(Round End & Trocar Point)
4 Pins Per Pack
Sterile

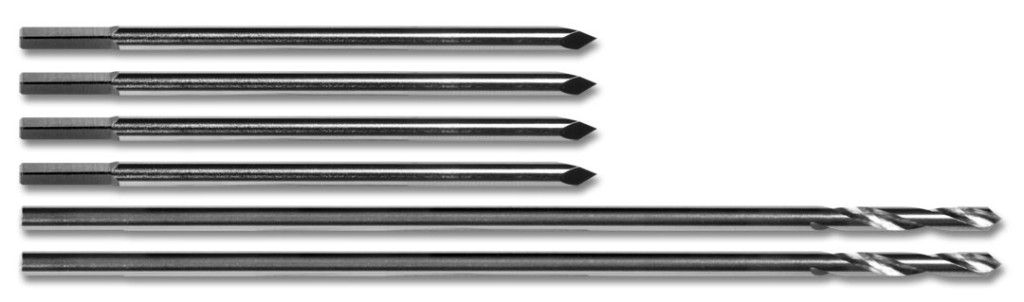

BMA-S90007S 86-4192-000
86-4192
3.1 76.2 Fixation Pin
(Triangular End & Trocar Point) & Twist Drills (Round End)
4 Pins & 2 Drills Per Pack
Sterile
DP86-9117 86-9117
869117
3.1 76.2 Fixation Pin
(Round End & Trocar Point)
10 Pins Per Pack
Non-Sterile

Zimmer® Biomet® Replacements

Compatible with Zimmer® Biomet® Knee Instrumentation Systems

Order Number Replacement Diameter (mm) Length (mm) Description Packaging
ZB00-5901-020-00 00-5901-020-00 3.2 75 Headless Drill Pin
(Hex End & Trocar Point)
4 Pins Per Pack
Sterile

DePuy® Synthes® Guide Wire Replacement

Compatible with DePuy® Synthes® 4.0 mm Cannulated Screw. Fabricated from 17-4 Stainless Steel.

Order Number Replacement Description Diameter (mm) Length (mm)
BR900-722 900.722 Partially Threaded Guide Wire with Diamond Point 0.049 inch
(1.25 mm)
5.9 inch
(150 mm)

DePuy® Synthes® Guide Wire Replacement

Compatible with DePuy® Synthes® Proximal Femoral Nailing Systems. Fabricated from 316L Stainless Steel.

Order Number Replacement Description Diameter (mm) Length (mm)
BR357-399 357.399 Partially Threaded Guide Wire with Trocar Point 0.126 inch
(3.2 mm)
15.7 inch
(400 mm)

Sterilization Parameters

Steam Sterilization …. Type Minimum Temperature / Minimum Exposure Time / Minimum Dry Time


Pre-Vacuum (Wrapped) …. 270°F (132°C) / 4 minutes / 30 minutes
Gravity (Wrapped) …. 270°F (132°C) / 15 minutes / 30 minutes

  • All cycles require a minimum of 30 minutes dry time.
  • Observe AAMI and hospital guidelines for steam sterilization and the sterilizer manufacturer’s written instructions for cycle parameters and load configurations.
