KM166-357-407 Replacement Quick Connect Solid Twist Drill – Available Now

Nov 13, 2015

Introducing the New KM166-357-407 DePuy® Synthes® Replacement Quick Connect Solid Twist Drill

KM166-357-407
Brasseler USA® Surgical Instrumentation is pleased to expand our DePuy® Synthes® Replacement Quick Connect Solid Twist Drill line to include the KM166-357-407. This twist drill is compatible with the DePuy® Synthes® Quick Connect shank (AO Synthes® Coupling). The KM166-357-407 has calibrations to identify the depth of the hole and also provides an estimate of the length of the screw to be used for implant (plate) fixation.

Applications:

  • This twist drill is part of the instrumentation for drilling holes in bone for implant (plate) fixation. The KM166-357-407 is first inserted through the Drill Sleeve/Guide to pre-drill the bone.

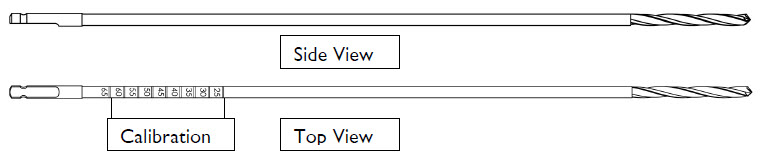

KM166-357-407

Dimensions:

  • Diameter: 4.0 mm
  • Total Length: 260.0 mm
  • Calibration Length: 65.0 mm
  • Number of Flutes: 3

Packaging:

  • Non-Sterile – 1 each per pack

Cross Referencing:

  • DePuy® Synthes®: 357.407; 357407

DuPuy® and Synthes® are registered trademarks of DePuy Synthes, Inc., a Johnson & Johnson Company, or its affiliates, not of Brasseler USA® Surgical Instrumentation.
