Cannulated Quick Connect Twist Drills from Brasseler USA
To order, call 800-535-6638.

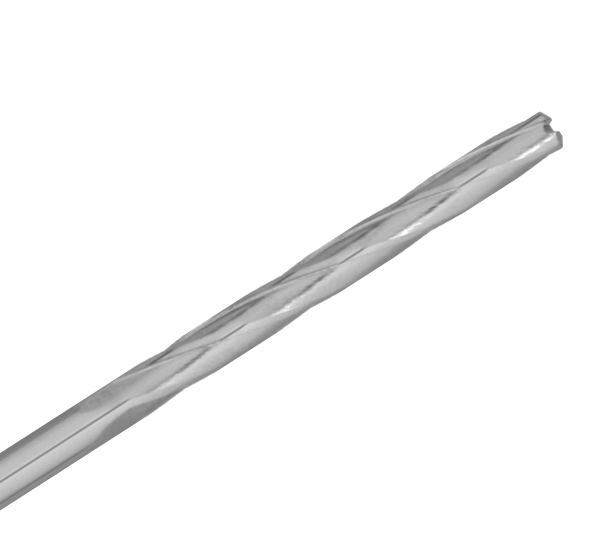

Cannulated Quick Connect Twist Drills

QUICK CONNECT – CANNULATED

Compatible with DePuy® Synthes® Quick Connect Coupling

Fabricated from autoclavable stainless steel. Features one piece construction.

Brasseler USA Surgical Instrumentation, your orthopedic solution provider, is proud to offer an extensive line of replacement Quick Connect Twist Drills. Available in a solid or cannulated cross section, our Quick Connect Twist Drills are compatible with DePuy® Synthes® Quick Connect Couplings. We are pleased to provide only the best quality products at an exceptional value.



Order Number Replaces
(Non-Sterile)
Non-Sterile (1/pk) Non-Sterile Diameter (mm) Cannulation
(mm)
Total Length (mm) Effective Length Number of Flutes
KM166-310-65 310.65 3.2 1.7 170 139 3
KM166-310-65 Twist Drill
KM166-310-66 310.66 4.5 1.7 170 139 3
KM166-310-66 Twist Drill
KM166-310-67 310.67 2.7 1.4 160 130 3
KM166-310-67 Twist Drill
KM166-310-68 310.68 3.5 1.4 160 130 3
KM166-310-68 Twist Drill
KM166-310-221 310.221 2.0 1.2 150 50 3
KM166-310-221 Twist Drill

Note: Because of their hollow cross section, cannulated drill bits are more susceptible to breakage than solid drill bits of the same diameter. Use less axial force, avoid bending and advance the drill bit slowly to minimize the possibility of breakage.

Sterilization Parameters

Steam Sterilization …. Type Minimum Temperature / Minimum Exposure Time / Minimum Dry Time


Pre-Vacuum (Wrapped) …. 270°F (132°C) / 4 minutes / 30 minutes
Gravity (Wrapped) …. 270°F (132°C) / 15 minutes / 30 minutes

  • All cycles require a minimum of 30 minutes dry time.
  • Observe AAMI and hospital guidelines for steam sterilization and the sterilizer manufacturer’s written instructions for cycle parameters and load configurations.

Download the Twist Drill Brochure (BM_5318)
