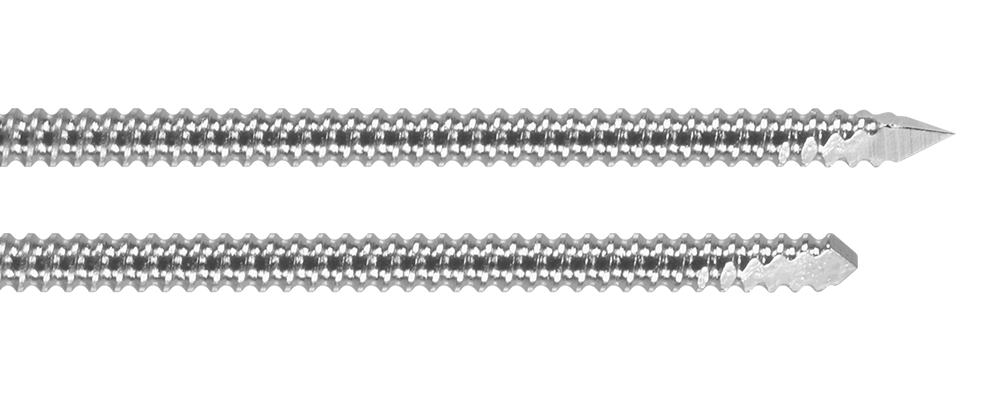

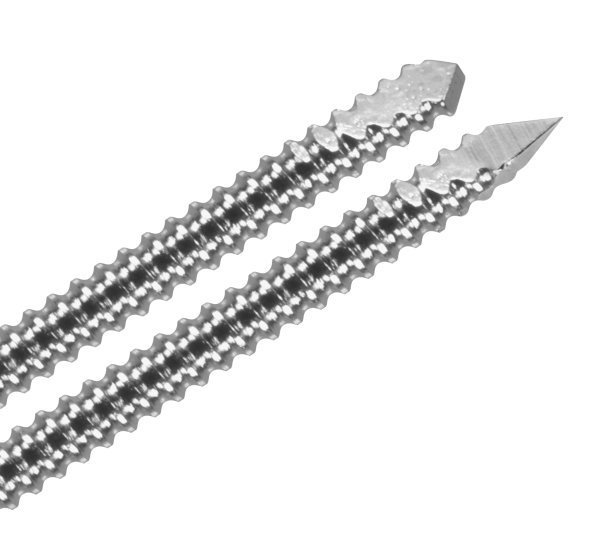

Fully Threaded K-Wires

FULLY THREADED

Fabricated from precision ground 316L implant grade stainless steel (ASTM F 138).

Brasseler USA® Surgical Instrumentation is proud to offer a comprehensive line of fully threaded k-wires. This high-quality, versatile line is designed and manufactured in the USA to very rigid specifications. Our fully threaded k-wires are fabricated from precision ground 316L implant grade stainless steel (ASTM F 138) and are subjected to strenuous inspection programs to assure exceptional results.

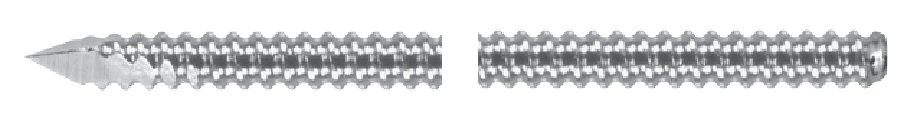

1. Single Trocar
3-Sided Point; Point on One End

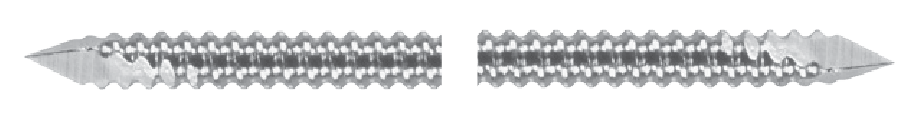

2. Double Trocar
3-Sided Point; Point on Both Ends

Fully Threaded K-Wire Tip Single Diamond Tip

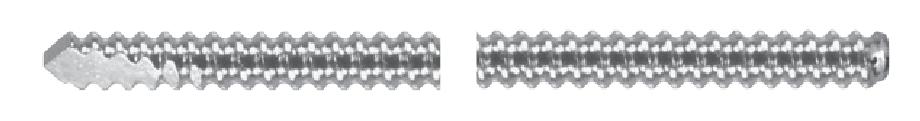

3. Single Diamond
2-Sided Point; Point on One End

Fully Threaded K-Wire Double Diamond Tip

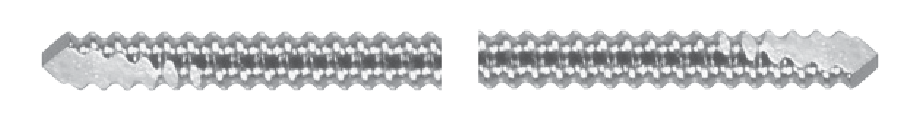

4. Double Diamond
2-Sided Point; Point on Both Ends

9” LENGTH

Point Style	Diameter		Order Number
Point Style	mm	in	Non-Sterile (6/pk)	Sterile (1/pk)
1.	0.9	.035	KM173-19-35	KM173-19-35S
	1.1	.045	KM173-19-45	KM173-19-45S
	1.4	.054	—	—
	1.6	.062	KM173-19-62	KM173-19-62S
2.	0.9	.035	KM173-29-35	KM173-29-35S
	1.1	.045	KM173-29-45	KM173-29-45S
	1.4	.054	KM173-29-54	KM173-29-54S
	1.6	.062	KM173-29-62	KM173-29-62S
3.	0.9	.035	KM173-39-35	KM173-39-35S
	1.1	.045	KM173-39-45	KM173-39-45S
	1.4	.054	KM173-39-54	KM173-39-54S
	1.6	.062	KM173-39-62	KM173-39-62S
4.	0.9	.035	KM173-49-35	KM173-49-35S
	1.1	.045	KM173-49-45	KM173-49-45S
	1.4	.054	KM173-49-54	KM173-49-54S
	1.6	.062	KM173-49-62	KM173-49-62S

Sterilization Parameters

Steam Sterilization …. Type Minimum Temperature / Minimum Exposure Time / Minimum Dry Time

Pre-Vacuum (Wrapped) …. 270°F (132°C) / 4 minutes / 30 minutes
Gravity (Wrapped) …. 270°F (132°C) / 15 minutes / 30 minutes

All cycles require a minimum of 30 minutes dry time.
Observe AAMI and hospital guidelines for steam sterilization and the sterilizer manufacturer’s written instructions for cycle parameters and load configurations.

Download the K-Wire Brochure (BM_5307)
